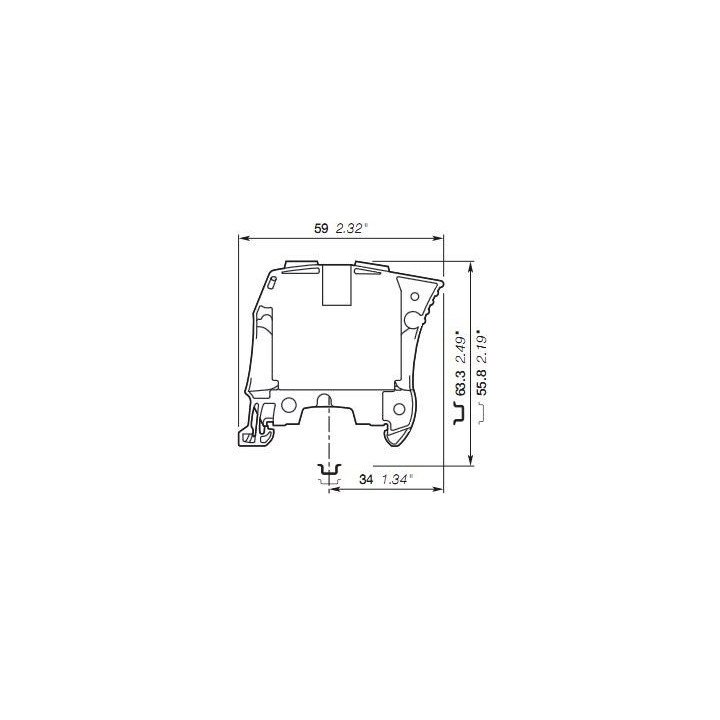

ENTRELEC HDM615 DIN Terminal Block 6-35mm² Screw

ENTRELEC HDM615 DIN Terminal Block 6-35mm² Screw

ENTRELEC
4,01 €
Sisältää alv:n
Screw-type DIN rail terminal block. 125A rated, 1000V voltage. Accepts 6-35mm² solid/stranded wire, -40 to 110°C operating range. Explosion-proof Ex e version.
On backorder

ENTRELEC HDM615 is a screw-connection terminal block for DIN rail mounting. Designed for reliable electrical connections in power distribution and control panels with high current capacity.

  • Wire range: 6-35 mm² (fine stranded without ferrule)
  • Wire with ferrule: 4-35 mm²
  • Rated current: 125 A
  • Rated voltage: 1000 V
  • Two screw connection points
  • Single level design with 2 terminal positions
  • Operating temperature: -40 to 110°C
  • Explosion-proof version (Ex e) available

  • Tuotemerkki
  • Viite
    HDM615
  • EAN13
    3472595160105
  • Valmistajan tuotenumero (MPN)
    HDM615

  • Operating temperature
    -40 to 110 °C
  • Weight
    0.053 kg
  • Mounting method
    DIN rail 55mm
  • Nominal voltage
    1000 V
  • Nominal Current
    125 A
  • Fine Wire without Ferrule
    6-35 mm²
  • Wire with Ferrule
    4-35 mm²
