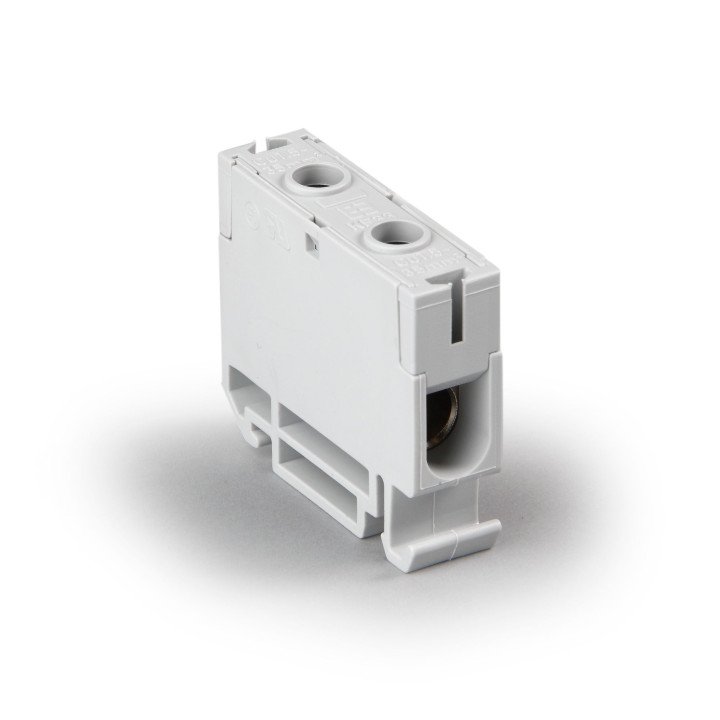

ENSTO AAG802 Terminal Block KE33 1.5-35mm² Grey

ENSTO AAG802 Terminal Block KE33 1.5-35mm² Grey

ENSTO
3,41 €
Sisältää alv:n
ENSTO AAG802 terminal block, 135A, 750V, screw connection, DIN rail mount. 1.5-35mm² wire range, compact design for electrical enclosures.
On backorder

ENSTO Clampo Compact terminal blocks ideal for space-constrained installation. Robust screw-type connection rated for 135A at 750V with multi-conductor support up to 35mm².

  • Accepts 1.5–35 mm² multi-conductor wire
  • Nominal current: 135 A
  • Voltage rating: 750 V
  • DIN 55 mm rail mounting
  • Operating range: -5 to 80°C
  • Grey thermoplastic housing

  • Tuotemerkki
  • Viite
    AAG802
  • EAN13
    6418677161704
  • Valmistajan tuotenumero (MPN)
    AAG802

  • Operating temperature
    -5 to 80 °C
  • Connection type
    Screw
  • Mounting method
    DIN rail 55 mm
  • Nominal voltage
    750 V
  • Color
    Grey
  • Nominal Current
    135 A
  • Wire section single-core fine wire without ferrule
    1.5 - 25 mm²
  • Wire section multi-core
    1.5 - 35 mm²
