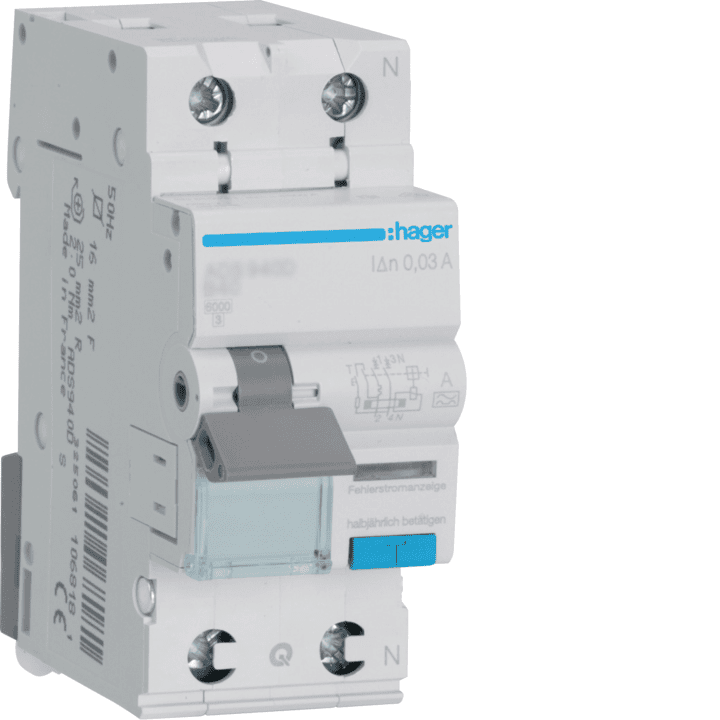

Hager ADS932D RCBO 1P+N 6kA B-32A 30mA Type A

The Hager ADS932D is a high-quality RCBO (Residual Current Circuit Breaker with Overcurrent Protection) combining overcurrent and earth leakage protection in a single device. Rated at 32A with a B-curve trip characteristic and 6kA breaking capacity, it is designed for residential and commercial applications. The integrated 30mA Type A RCD ensures protection against sinusoidal and pulsating DC fault currents.

• 1P+N configuration for single-phase circuits
• B-curve for general purpose and resistive loads
• 6kA breaking capacity (Icn)
• 30mA residual current sensitivity, Type A
• Rated voltage 230V AC, frequency 50/60Hz
• Width: 2 DIN modules, mounts on 35mm DIN rail
• Screw terminals for secure wiring

Ideal for protecting circuits supplying sockets, lighting, and appliances, the Hager ADS932D offers reliable and compact protection. Comply with the latest electrical standards.
