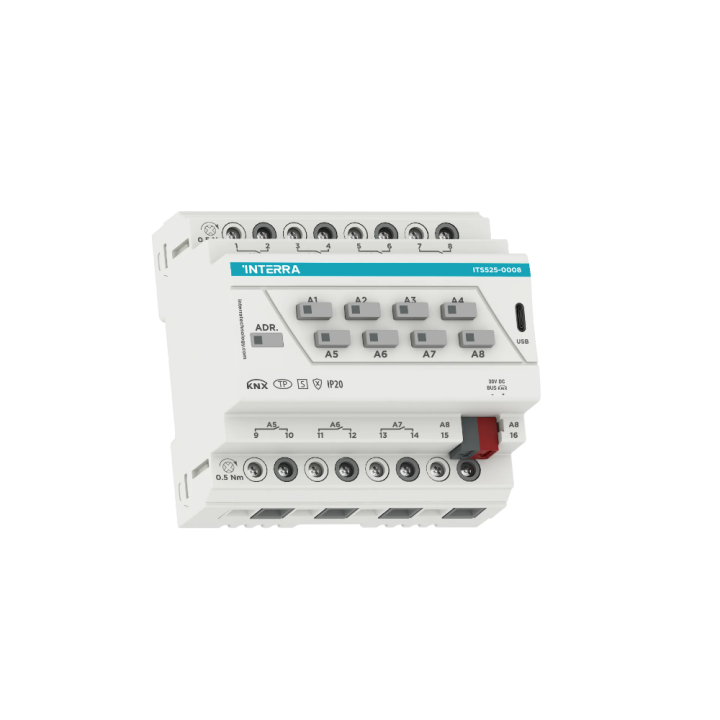

Interra Combo PLUS KNX -toimilaite, 8-kanavainen 16A

The Interra Combo PLUS ITS525-0008 is a versatile 8-channel KNX actuator built to cover every automation requirement in a smart building. Communicating over the KNX bus, it exchanges information with KNX sensors and integrates with the building management system, making it well suited to residential and hotel projects.

Every output can be used for lighting or heating control, and two consecutive outputs can be combined for shutter/blind operation. Manual control buttons on the device allow direct operation of the connected loads if bus communication is interrupted, and the actuator is powered entirely from the KNX bus, so no external power supply is required. All configuration is done through ETS.

• 8 channels, 16A output current
• Lighting, heating and shutter/blind control
• Shutter/blind operation using 2 combined outputs
• Manual control buttons for local operation
• Powered directly from the KNX bus
• Full configuration via ETS software
• Last-state memory after power failure
