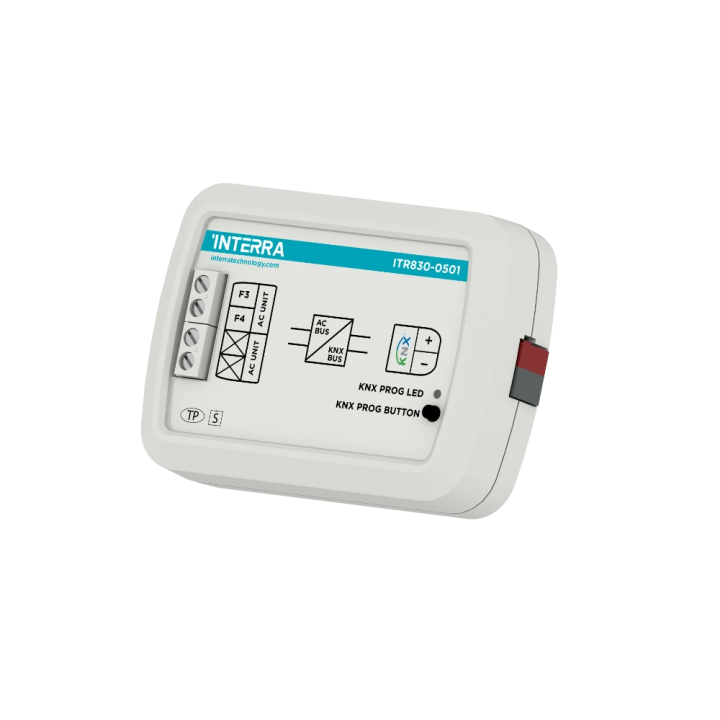

Interra 1-Channel Samsung Air Conditioner Gateway (sisäyksikkötyyppi)

The Interra Samsung AC KNX Gateway monitors and controls the functioning parameters of Samsung NASA air conditioners via the KNX bus. It installs easily inside the AC's own indoor unit or in a suitable nearby location, connecting one side to the AC's electronic circuit and the other directly to KNX.

This 1-channel version can control a single Samsung NASA air conditioner synchronously or independently, using 4 logical advanced parameters (up to 4 inputs each, AND/OR/XOR) and 8 advanced converter parameters with four math operations, useful for energy savings, scenes and temperature limits. Note that the air conditioner must remain off during mode transitions between heating and cooling, and the unit reports error notifications for exceptional cases.

• Bi-directional monitoring and control of a Samsung NASA air conditioner via KNX
• 4 logical advanced parameters (AND/OR/XOR, up to 4 inputs each)
• 8 advanced converter parameters for math calculations by input type
• Usable for energy savings, configurable scenes and temperature limits
• Error notifications for exceptional cases
• Easy installation inside or near the AC indoor unit
