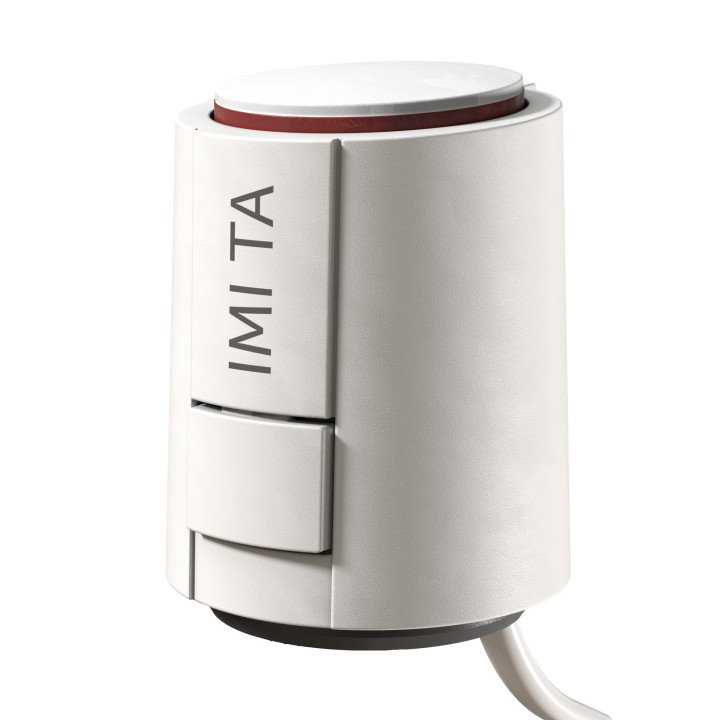

Thermoactuator for Valve M30 230V Normally Closed 1m DJR014

Thermoactuator for Valve M30 230V Normally Closed 1m DJR014

IMI
26,74 €
Maksudega
IMI DJR014 thermoactuator with wax element, 230V AC/DC supply. Normally closed (NC) M30×1.5 valve connection, PWM control, IP54 rated.
On backorder

IMI DJR014 is a thermoelectric actuator designed for automatic flow control in heating and cooling systems. Features wax element actuation technology with position indicator and reliable operation across temperature ranges.

  • Valve connection: M30 × 1.5
  • Supply: 230V AC/DC
  • Control: PWM (pulse-width modulated)
  • Function: Normally closed (NC)
  • Cable length: 1 m
  • Travel: 5 mm
  • Power input: 1 VA max
  • IP rating: IP54 in any mounting position

  • Bränd
  • Tootekood
    DJR014
  • ean13
    5902276825170
  • MPN
    DJR014

  • IP rating
    IP54
  • Supply voltage
    230 V AC/DC
  • Cable length
    1 m
  • Function
    Normally closed
  • Valve connection
    M30 x 1.5
  • Control Signal
    PWM
  • Max power input
    1 VA
  • Travel
    5 mm
