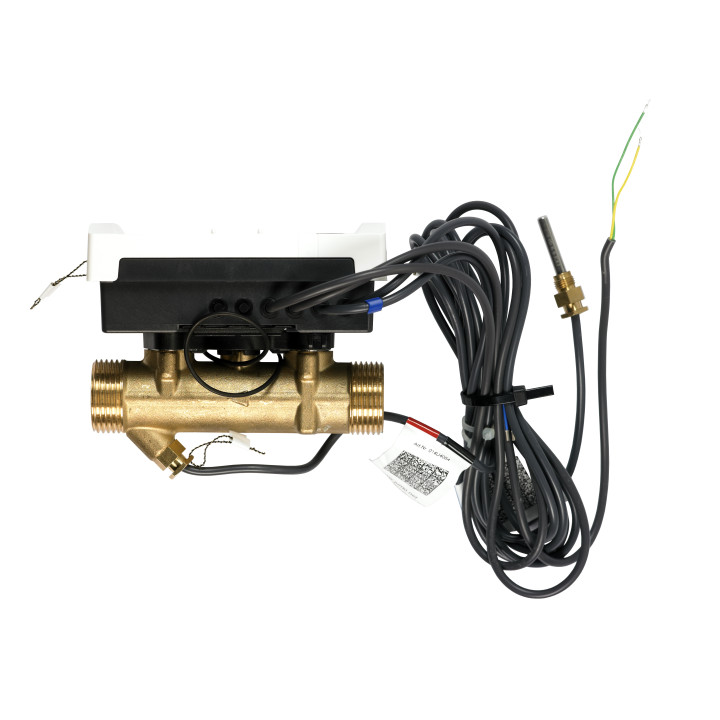

DANFOSS SONOSAFE 10 Ultrasonic Heat Meter 1.5 m³/h M-Bus

DANFOSS SONOSAFE 10 Ultrasonic Heat Meter 1.5 m³/h M-Bus

DANFOSS
249,77 € (Säästke 167,65 €)
82,12 €
Maksudega
Compact ultrasonic heat meter for residential heating systems. 1.5 m³/h capacity, DN15 external thread, M-Bus interface, battery-powered. PN16, max 95°C.
Tarne: 5 tööpäeva

Teavita, kui on jälle saadaval

Interested in this product? Drop us an email and we will let you know when it's available for order.

DANFOSS SONOSAFE 10 is a compact and reliable ultrasonic heat meter designed for residential heating systems. Features precision ultrasonic measurement technology, M-Bus communication interface for remote reading, and battery power for maintenance-free operation.

  • Ultrasonic technology for precise heating energy measurement
  • 1.5 m³/h nominal capacity, suitable for small heating circuits
  • DN15 external thread connection for flexible mounting
  • M-Bus interface for remote data collection and monitoring
  • Battery-powered with no external wiring required
  • Max pressure PN16, operating temperature up to 95°C
  • Compact 190×150×110 mm, 900 g

  • Bränd
  • Tootekood
    CIR159
  • ean13
    5702425127205
  • MPN
    CIR159

  • Toiteallikas
    Aku
  • Kaal
    0.9 kg
  • Connection type
    External thread
  • Height
    110 mm
  • Interface
    M-Bus
  • Width
    150 mm
  • Device Type
    Ultrasonic Heat Meter
  • Depth
    190 mm
  • Max Temperature
    95 °C
  • Max Pressure
    PN16 bar
  • Nominal diameter
    DN15
  • Immersion Length
    110 mm
