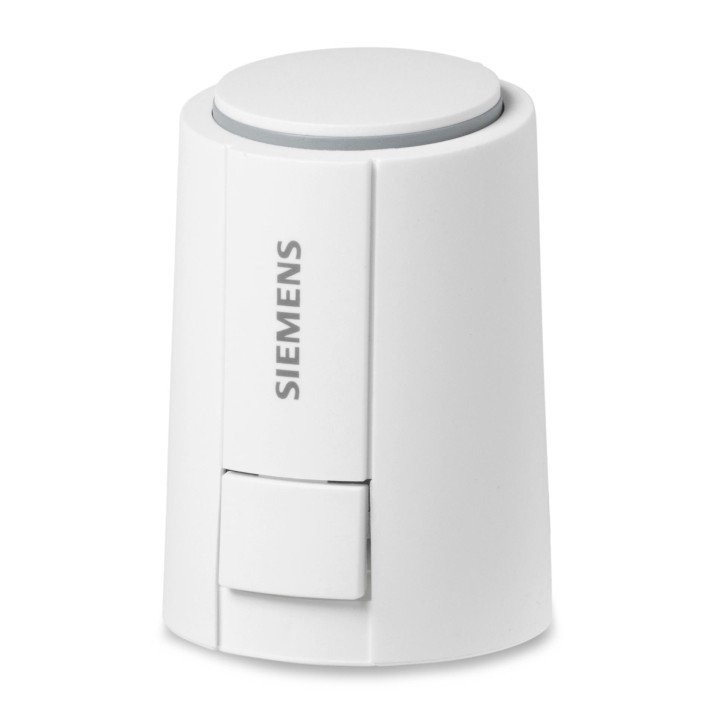

SIEMENS DAU394 Thermal Actuator STA121 AC/DC 24V

SIEMENS DAU394 Thermal Actuator STA121 AC/DC 24V

SIEMENS
22,51 €
Maksudega
Siemens STA121 thermal actuator with 6.5mm stroke, 1m cable, 24V supply. On/Off NC operation, white colour. Compatible with Siemens radiator valves.
On backorder

Siemens STA121 thermal actuator for two-point valve control, providing effective temperature regulation with position feedback. In deactivated (NC) state, the rod extends. Compatible with Siemens radiator and heating valves. Includes integrated connection for standard M30 x 1.5 valve threads.

  • 6.5mm stroke length
  • 24V AC/DC power supply
  • 1m cable connection
  • NC (normally closed) operation
  • White polyamide housing
  • M30 x 1.5 universal valve mount

  • Bränd
  • Tootekood
    DAU394
  • ean13
    4047625026165
  • MPN
    DAU394

  • Weight
    0.13 kg
  • Supply voltage
    AC/DC 24 V
  • Cable length
    1 m
  • Color
    White
  • Model Type
    Straight
  • Valve connection
    M30 x 1.5
  • Stroke
    6.5 mm
  • Operation mode
    ON/OFF NC
