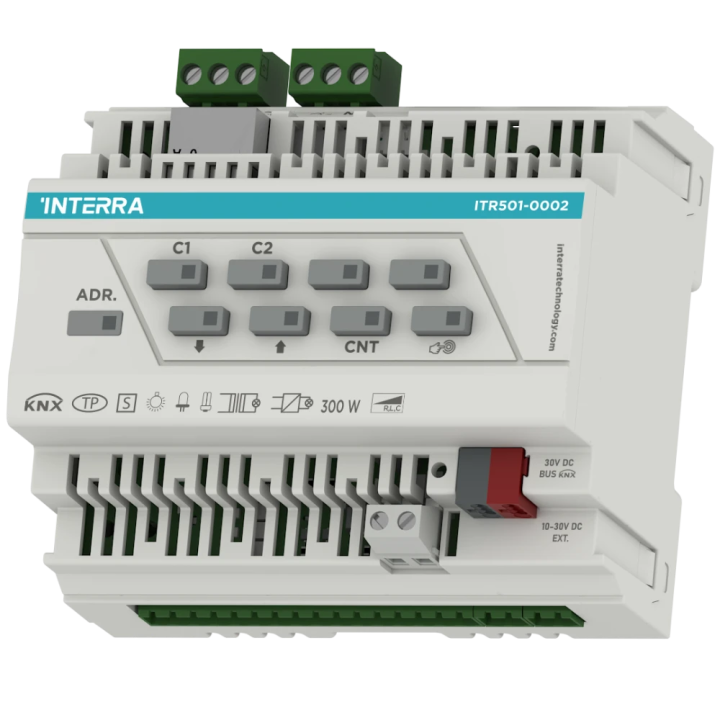

Interra ITR501-0002 Interra KNX universaalne hämardusajam – 2 kanalit

This 2-channel universal dimming actuator generates up to 300W of output per channel and can drive resistive, inductive and capacitive loads, including incandescent, low- and high-voltage halogen lamps as well as dimmable LED retrofit and compact fluorescent lamps. Automatic load recognition based on ETS configuration removes the guesswork from commissioning.

Built-in temperature and short-circuit protection, channel status LEDs and load-presence/type detection keep the actuator safe and easy to diagnose, and it can even be programmed without a 230V supply. Each channel's dim curve is divided into 5 zones with independently adjustable dimming speed, and the device supports 3-phase installations with separate phase and neutral wiring per channel.

• 2 channels, up to 300W output per channel
• Drives resistive, inductive and capacitive (R, L, C) loads
• Automatic load recognition via ETS
• Dimmable LED retrofit and CFL lamp support
• 5-zone dim curve with adjustable dimming speed per zone
• RGB LED status indicator per channel
• Manual control and 3-phase operation with separate neutral per channel
