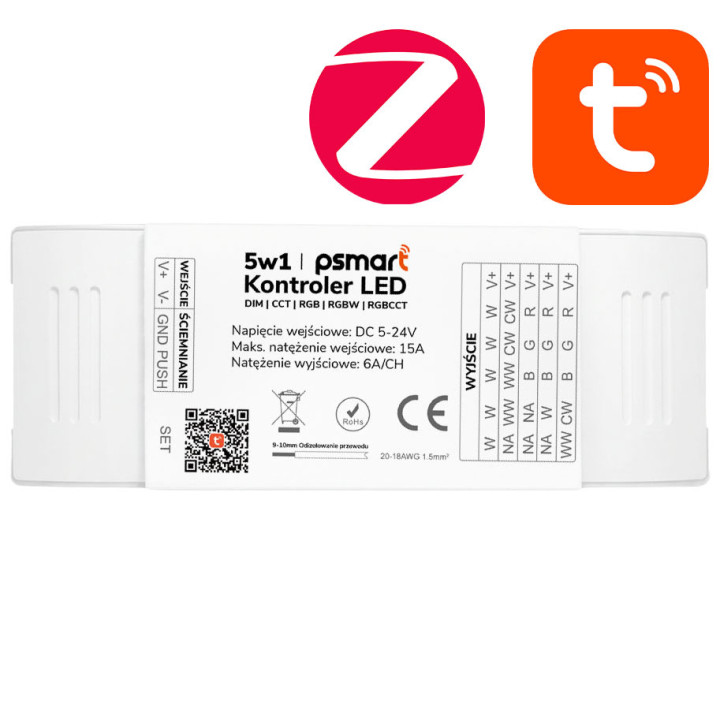

Psmart LC331 5-in-1 LED Controller Dim CCT RGB RGBW RGBCCT 5-24V 15A ZigBee Tuya

The Psmart LC331 is a versatile 5-in-1 LED controller that supports single color (DIM), variable color temperature (CCT), RGB, RGBW, and RGBCCT LED strips. Operating on DC 5-24V with a total output current of 15A (6A per channel), it provides smooth PWM dimming for all your lighting needs.

• 5-in-1 compatibility: Works with DIM, CCT, RGB, RGBW, and RGBCCT strips – one controller for any project.
• Smart control via Tuya: Connect through ZigBee 3.0 to the Tuya app for schedules, scenes, automations, and voice control (requires ZigBee gateway).
• RF MESH technology: Supports up to 10 PX Series remotes with a range of 30m; relay function extends signal.
• Push-Dim input: Use a momentary switch for on/off and stepless dimming without a remote.
• Power-off memory: Retains your settings after power loss.
• Reverse polarity protection: Prevents damage from incorrect wiring.

Note: A ZigBee gateway is required for app control. For full 15A load, use minimum 1.5 mm² wire.
