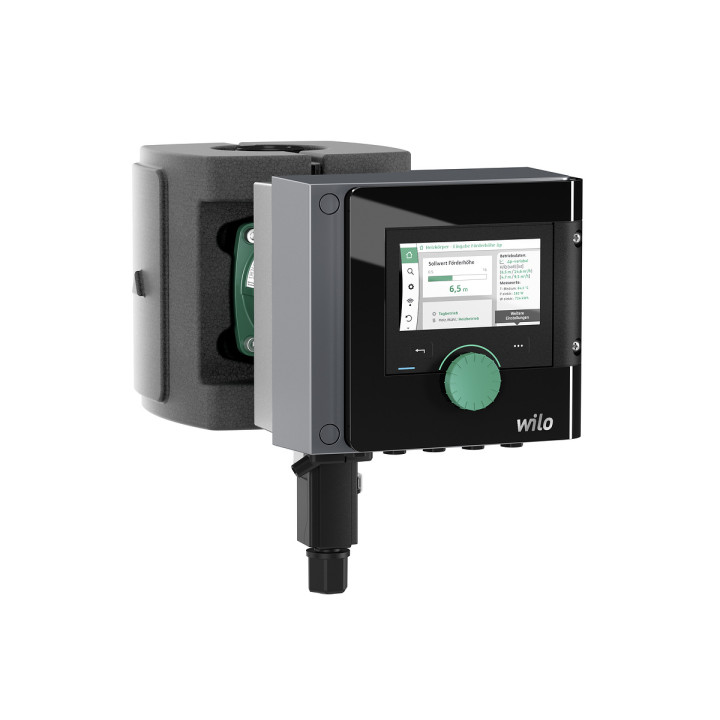

WILO Stratos Maxo 25/0.5-8 circulation pump PN10 COS268

WILO Stratos Maxo 25/0.5-8 circulation pump PN10 COS268

WILO
€1,247.18
Tax included
WILO COS268 Stratos Maxo smart circulation pump 5.99 m³/h, 8.45 m head, 1 kW EC motor. PN10, energy-saving EEI 0.19.
On backorder

Smart circulation pump for HVAC and building automation systems. EC-motor driven Stratos Maxo series delivers optimized energy performance with integrated electronic power control. Ideal for radiator, underfloor heating, and ceiling cooling applications.

  • 6 m³/h nominal flow, 8.5 m max static head
  • 0.16 kW EC motor, single-phase 230V 50/60 Hz
  • Energy efficiency index 0.19 (superior rating)
  • Cast iron GG20 body with PP-GF impeller
  • PN10 rated, -10 to +110°C operating range
  • Integrated power adjustment for system optimization

  • Brand
  • Reference
    COS268
  • EAN13
    4062679192017
  • MPN
    COS268

  • Weight
    8.3 kg
  • Phases
    1
  • Frequency
    50/60 Hz
  • Nominal Current
    1.05 A
  • Max working pressure
    10 bar
  • Nominal flow rate
    5.994 m³/h
  • Pump body material
    Cast iron GG20 (GJL-200)
  • Impeller material
    Polypropylene (PP-GF)
  • Max static head
    8.455 m
  • Energy Efficiency Index
    0.19
  • Max pressure at BEP
    53.14 kPa
  • Max flow rate
    10.02 m³/h
  • Motor input power
    0.16 kW
