Habotest HT5205 Digital Insulation Tester

The Habotest HT5205 is a professional digital insulation tester designed for accurate measurement of insulation resistance in electrical circuits, wires, and devices. With a wide range up to 200 GΩ and test voltages of 100V, 250V, 500V, 1000V, and 2500V, it helps identify weakened insulation that could lead to failures or electric shock hazards.

• Insulation resistance measurement up to 200 GΩ with selectable test voltages (100V–2500V)
• AC/DC voltage measurement up to 750V AC / 1000V DC
• Continuity testing with audible buzzer (threshold < 50Ω)
• Timed measurement function and dielectric absorption coefficient / polarization index
• Large LCD display for clear readings, even in low light
• Rugged, shockproof housing with rubber reinforcements and silicone cover
• Auto power-off and low battery indicator

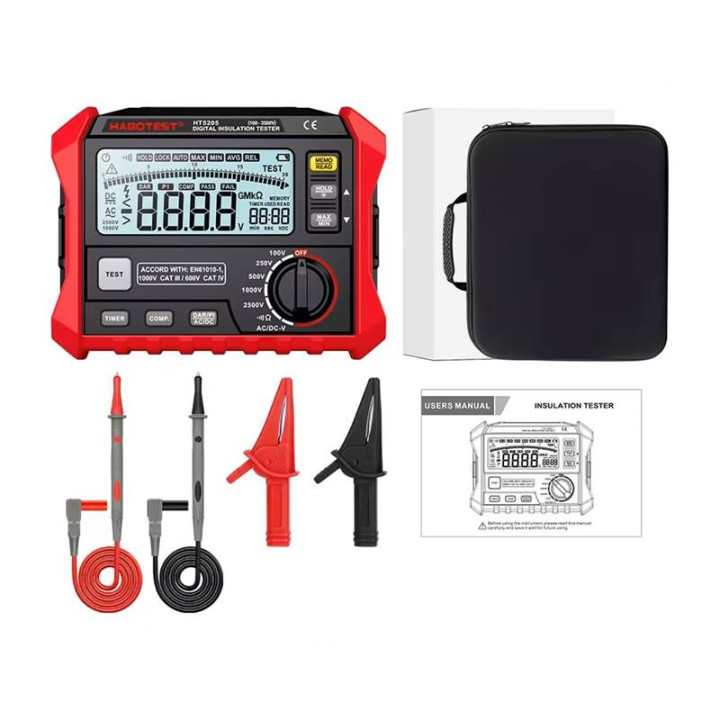

The HT5205 comes complete with test leads, crocodile clamps, 8 AA batteries, and a protective case, making it ready for professional use in workshops, construction sites, and industrial environments.
