EMITER EM-1355N_DCAC DC/AC Surge Protective Device (SPD) Type 2, IP65, 10A, 100mA RCD

EMITER EM-1355N_DCAC DC/AC Surge Protective Device (SPD) Type 2, IP65, 10A, 100mA RCD

EMITER
€272.42
Tax included
Protect your PV system with EMITER EM-1355N_DCAC SPD Type 2, IP65, 10A MCB, 100mA RCD. Ideal for DC/AC combined applications. Order now!
Delivery: 5 business days

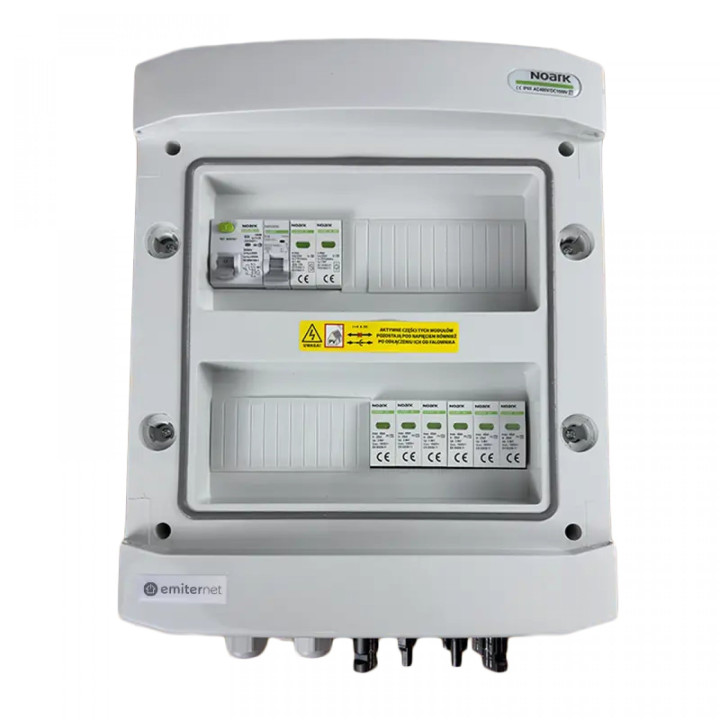

The EMITER EM-1355N_DCAC is a combined DC/AC surge protective device (SPD) Type 2, designed for photovoltaic systems. It features an IP65 enclosure for outdoor use, a 10A miniature circuit breaker (MCB), and a 100mA residual current device (RCD). The unit includes 2 PV string inputs and 2 MPPT inputs, making it suitable for dual-string solar installations.

  • Type 2 SPD for AC and DC protection
  • IP65 ingress protection for outdoor mounting
  • Rated current 10A with integrated MCB
  • Residual current 100mA RCD for safety
  • 2 PV string inputs and 2 MPPT inputs
  • Nominal voltage 1000V DC

This all-in-one unit simplifies installation and ensures reliable protection for your solar power system. Order the EMITER EM-1355N_DCAC today for peace of mind.

  • Brand
  • Reference
    1713010
  • In stock
    999 Items
  • EAN13
    5904905313300
  • MPN
    EM-1355N_DCAC

  • Application
    Combined AC+DC
  • Mounting type
    Enclosed switchgear (IP65)
  • Mppt inputs
    2
  • Rated current
    10 A
  • Brand
    EMITER
  • Model
    EM-1355N_DCAC
  • SKU
    1713010
  • Product Type
    DC/AC combined surge protective device (SPD) with MCB and RCD
  • EAN
    5904905313300
  • Number of Poles
    1P
  • Ingress Protection (IP)
    IP65
  • Residual current
    100 mA
  • SPD Type / Class
    Type 2
  • Nominal Voltage (Uc)
    1000V DC V
  • PV String Inputs
    2
