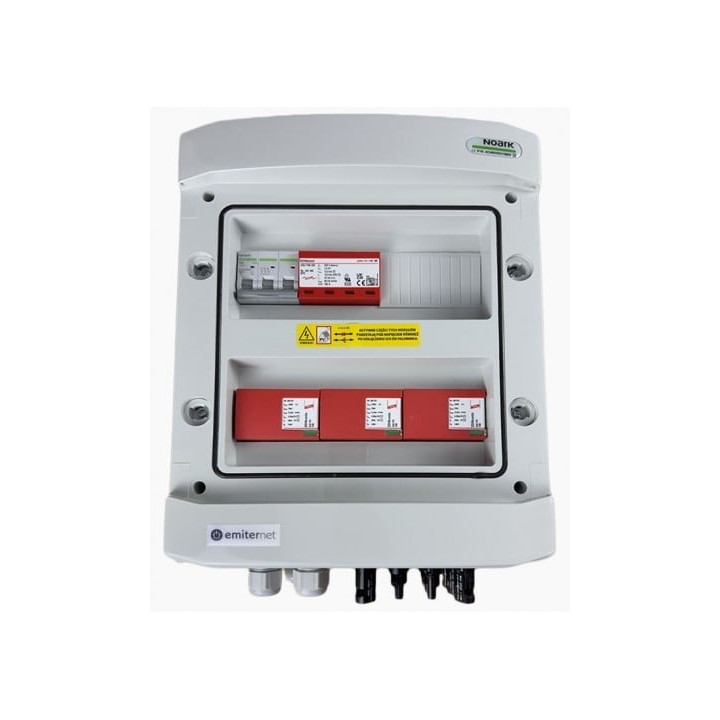

EMITER EM-1146N_DCAC DCAC Switchgear IP65, SPD Type 2, 63A, 300mA

EMITER EM-1146N_DCAC DCAC Switchgear IP65, SPD Type 2, 63A, 300mA

EMITER
€365.73
Tax included
IP65 DCAC switchgear with Type 2 SPD for PV systems. 63A rated current, 300mA RCD. Reliable protection for solar installations.
Delivery: 5 business days

The EMITER EM-1146N_DCAC is a versatile DCAC switchgear designed for photovoltaic systems. It combines DC and AC protection in one IP65 enclosure, making it suitable for outdoor installation. The unit includes Type 2 surge protective devices (SPD) for both DC and AC sides, a 63A three-phase AC RCD with 300mA residual current, and supports up to 3 PV strings with 3 MPPT inputs.

  • IP65 ingress protection – weatherproof for outdoor use
  • Type 2 SPD for DC (1000V) and AC (400V) circuits
  • 63A rated current for three-phase AC loads
  • 300mA residual current device (RCD) Type A
  • Supports up to 3 PV strings and 3 MPPT inputs
  • Ideal for solar combiner boxes and distribution

This switchgear ensures reliable overvoltage and fault protection for your solar energy system. Easy to install and built to last.

  • Brand
  • Reference
    1713064
  • In stock
    999 Items
  • EAN13
    5904905313195
  • MPN
    EM-1146N_DCAC

  • IP rating
    IP65
  • Rated voltage
    1000V DC / 400V AC
  • Rated current
  • Spd type
    Type 2
  • Brand
    EMITER
  • Model
    EM-1146N_DCAC
  • SKU
    1713064
  • Product Type
    DCAC switchgear
  • EAN
    5904905313195
  • Device Type
    MCB
  • Number of Poles
    3P
  • Residual Current (RCD)
    300 mA
