Siemens VMP45.15 3-Way Control Valve with Bypass, Kvs 2.5, PN16 images

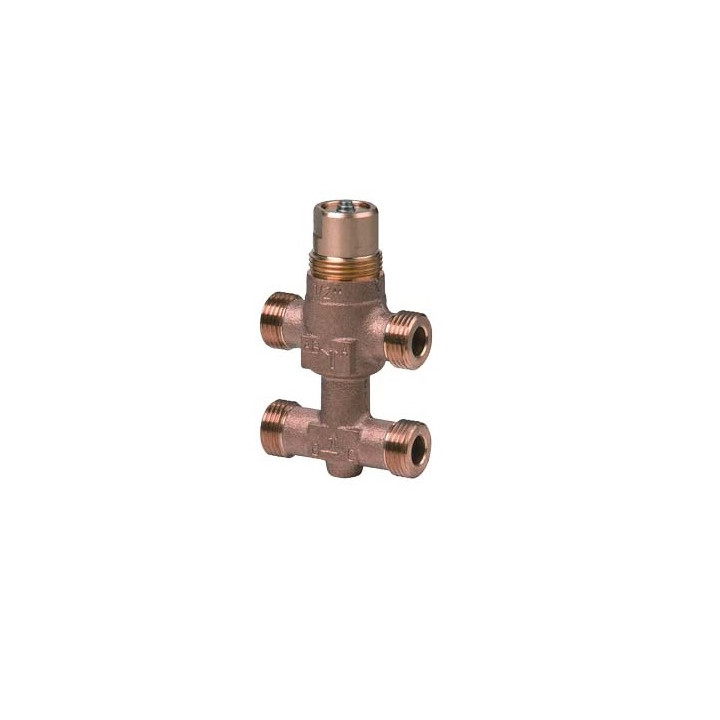

Siemens VMP45.15 3-Way Control Valve with Bypass, Kvs 2.5, PN16
Price:
€21.44
Tax included
Siemens VMP45.15 3-way seat valve with bypass and threaded connections, DN15, Kvs 2.5, PN16, for fan coils and heating/cooling zones.
The Siemens VMP45.15 is a 3-way seat control valve with a bypass and threaded connections, sized DN15 and rated to PN16. It has a Kvs value of 2.5 on both the main and bypass ports, an equal-percentage flow characteristic, and a maximum pressure differential of 3.5 bar in the open position. It is suited for controlling fan coils, chilled ceilings, and heating zones with water or water/antifreeze mixtures.
-
Brand
-
ReferenceCGE458
-
EAN137612914013149
