MEAN WELL EDR-120-12 120W 12V DIN Rail Power Supply images

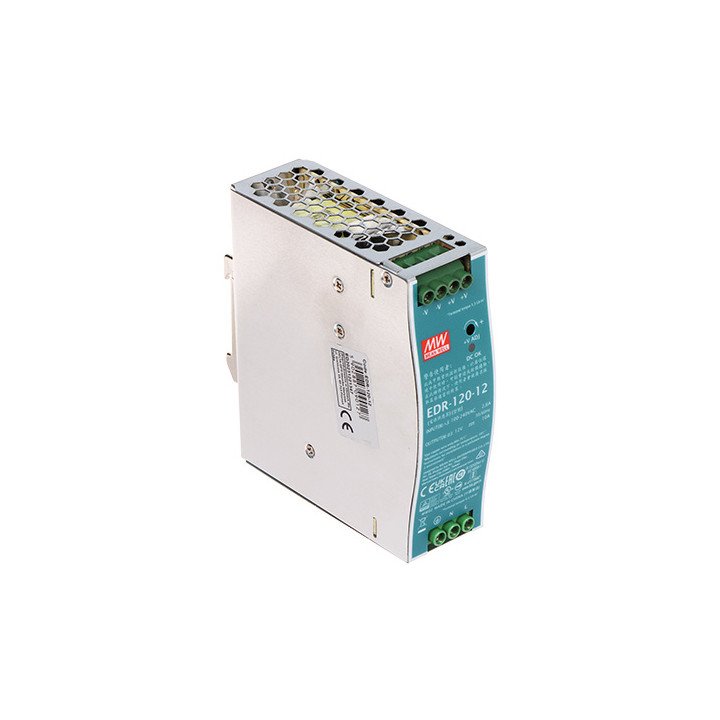

MEAN WELL EDR-120-12 120W 12V DIN Rail Power Supply
Price:
€48.48
Tax included
Buy MEAN WELL EDR-120-12 120W 12V DC DIN rail power supply. High efficiency, compact size, reliable for industrial use.
The MEAN WELL EDR-120-12 is a 120W single-output industrial power supply with a nominal 12V DC output. It features a compact DIN rail mountable design, making it ideal for control cabinets and industrial automation systems.
- High efficiency up to 89% reduces energy loss and heat generation.
- Universal AC input 85-264 VAC with active PFC.
- Protections: short circuit, overload, over voltage.
- Wide operating temperature range -30°C to +70°C.
- Compact size 125.2 x 113.5 x 40 mm saves space.
Ideal for powering sensors, controllers, and other 12V devices in industrial environments.
-
Brand
-
ReferenceEDR-120-12
-
In stock999 Items
-
EAN135902887090127
-
MPNEDR-120-12
-
Dimensions125.2 x 113.5 x 40 mm
-
Operating temperature-30 to +70 °C
-
Weight0.5 kg
-
Voltage12 V DC
-
MountingDIN Rail
-
Input voltage85-264 VAC / 120-370 VDC
-
ProtectionShort circuit, Overload, Over voltage
-
CertificationCE, UL, TUV
-
Power120 W
-
Rated current10 A
-
Efficiency89 %
-
BrandMean Well
-
ModelEDR-120-12
-
SKUEDR-120-12
-
Product TypePower supply
-
EAN5902887090127
