Shelly
17,65 €
AR PVN
Compact smart energy meter with Wi-Fi, Zigbee, Bluetooth, Matter. Real-time monitoring, ±1% accuracy, easy installation. Buy now!
Piegāde: 5 darba dienas

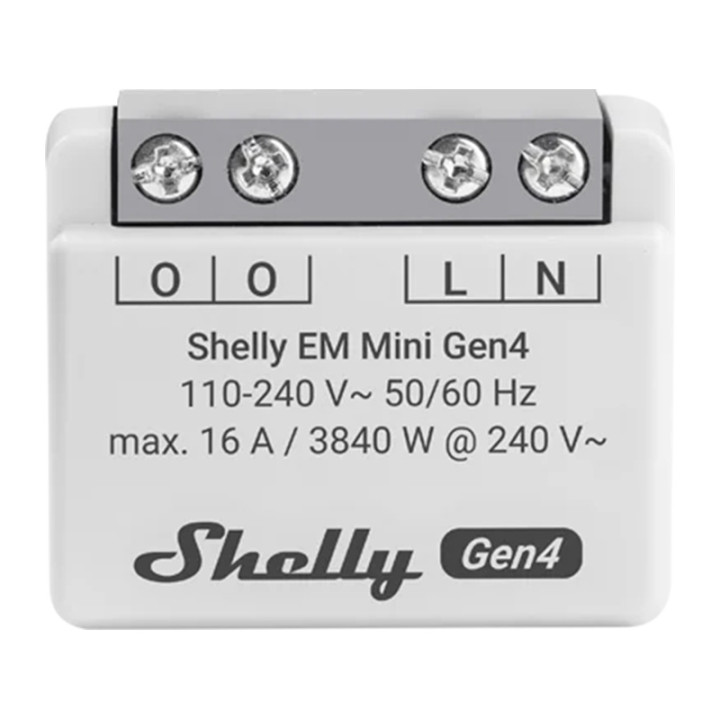

The Shelly EM Mini Gen4 (EMMGen4) is a compact smart energy meter that measures power consumption in real time with ±1% accuracy. Despite its miniature size (29×34×16 mm), it offers advanced features like two-way energy measurement, data logging, and integration with smart home systems via Wi-Fi, Zigbee, Bluetooth, and Matter.

  • Real-time monitoring of voltage, current, power, and energy (both consumed and produced).
  • Multiple connectivity: Wi-Fi 802.11 b/g/n/ax, Zigbee 802.15.4, Bluetooth 5.0, and Matter protocol.
  • Easy installation: fits in standard junction boxes, behind outlets, or in small switchboards.
  • Data export: CSV and JSON via RPC; built-in web interface and scripting (Shelly Script).
  • Smart home integration: works with Home Assistant, Tuya, MQTT, HTTP, WebSocket, and more.

Ideal for home energy management, PV system monitoring, and appliance fault detection. Order the Shelly EM Mini Gen4 today and take control of your energy usage.

  • Zīmols
  • Norāde
    083980
  • Pieejamās vispirms
    226 vienības:
  • ean13
    3800238070823
  • MPN
    EMMGen4

  • Aizsardzības klase
    IP20
  • App / Ecosystem
    Shelly
  • Power supply
    110-240 V AC
  • Dimensions
    29 × 34 × 16 mm
  • Communication protocol
    Wi-Fi
  • Operating temperature
    -20 to 40 °C
  • Weight
    13 g
  • Fāzes
    Single-phase
  • Energy metering
    Yes
  • Mounting type
    Above/Below breaker (flat terminal)
  • Housing material
    plastic
  • Humidity
    30 - 70 % RH
  • Max altitude
  • Maks. strāva
  • Energy limitation class
    3
  • Measurement range
    Active power and energy
  • Data memory
    min. 10 days with a resolution of 1 min
  • Data export
    CSV, JSON (RPC)
  • Bluetooth
    5.0, range up to 10 m (indoors)
  • Zigbee
    802.15.4, range up to 100 m (indoors)
  • Scripting
    Yes, Shelly Script
  • Schedules
    up to 20
  • Webhooks
    Up to 20 (5 URLs each)
  • Integration support
    External systems, Home Assistant, Tuya, others
  • Screw terminals
    Max. tightening torque 0.4 Nm
  • Wire stripping length
    6 - 7 mm
  • Rated voltage
    110-240 V AC
  • Remote switching
    No
  • Nominālā strāva
  • Zīmols
    Shelly
  • Model
    EMMGen4
  • Artikuls
    083980
  • Produkta veids
    Energy meter
  • EAN
    3800238070823
  • Ierīces tips
    Energy meter
  • Wi-Fi
    802.11 b/g/n/ax (2.4 GHz), range up to 30 m (indoor)
  • Max Measuring / Switching Current
    16 A
  • Smart / Connected
    Yes
  • Built-in Display
    No
  • Breaking Capacity
    6 kA
  • Min Short-Circuit Current
    6 kA
  • Voltage (AC)
    110-240 V~, 50/60 Hz (±1%)
  • Current (AC)
    0 - 16 A (±1%)
  • Maximum Power
    3840 W
  • Support for Protocols
    MQTT, HTTP / HTTPS (WebHooks), WebSocket, UDP, Matter
  • Built-in Web Interface
    yes
  • Cross-section of Wires
    0.5 - 4 mm²
