Hager HYD007H būra spailes sadales bloks 3P 630A 2x35-300mm² Cu/Al Attēli
Hager HYD007H būra spailes sadales bloks 3P 630A 2x35-300mm² Cu/Al
Price:
312,89 €
AR PVN

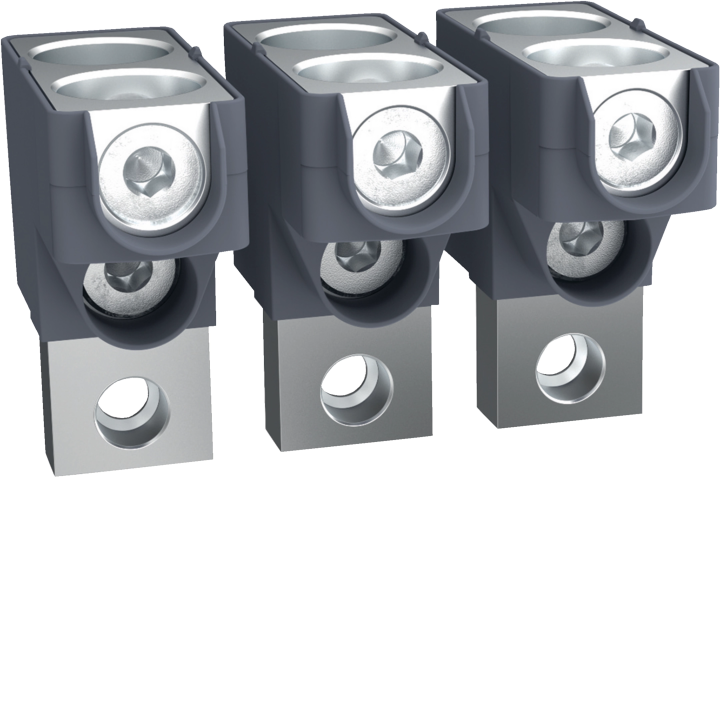

Hager HYD007H 3-pole distribution block with cage clamp connection, rated 630A, for Cu/Al conductors 2x35-300mm². Reliable power distribution.
The Hager HYD007H is a high-current distribution block designed for efficient power distribution in electrical installations. With a rated current of 630A and 3-pole configuration, it is suitable for industrial and commercial applications.
- 3-pole (3P) design for three-phase systems
- Cage clamp connection ensures secure and reliable wiring
- Accepts Cu/Al conductors from 2x35 to 300 mm²
- Rated current: 630A
- Rated voltage: up to 400V
Ideal for use in distribution boards and switchgear where high current capacity and robust connections are required.
-
Zīmols
-
NorādeHYD007H
-
Pieejamās vispirms800 vienības:
-
ean133250613370688
-
MPNHYD007H
-
Rated voltage400V V
-
PieslēgumsCage clamp
-
Polu skaits3P
-
Nominālā strāva630 A
-
Contact materialCopper/Aluminium
-
ZīmolsHager
-
ModelHYD007H
-
ArtikulsHYD007H
-
Produkta veidsDistribution block
-
EAN3250613370688
-
Conductor Cross-Section2x35-300 mm² mm²
